eCOM Programmer

This programmer is compatible only with latest* LatSlot eCOMs!

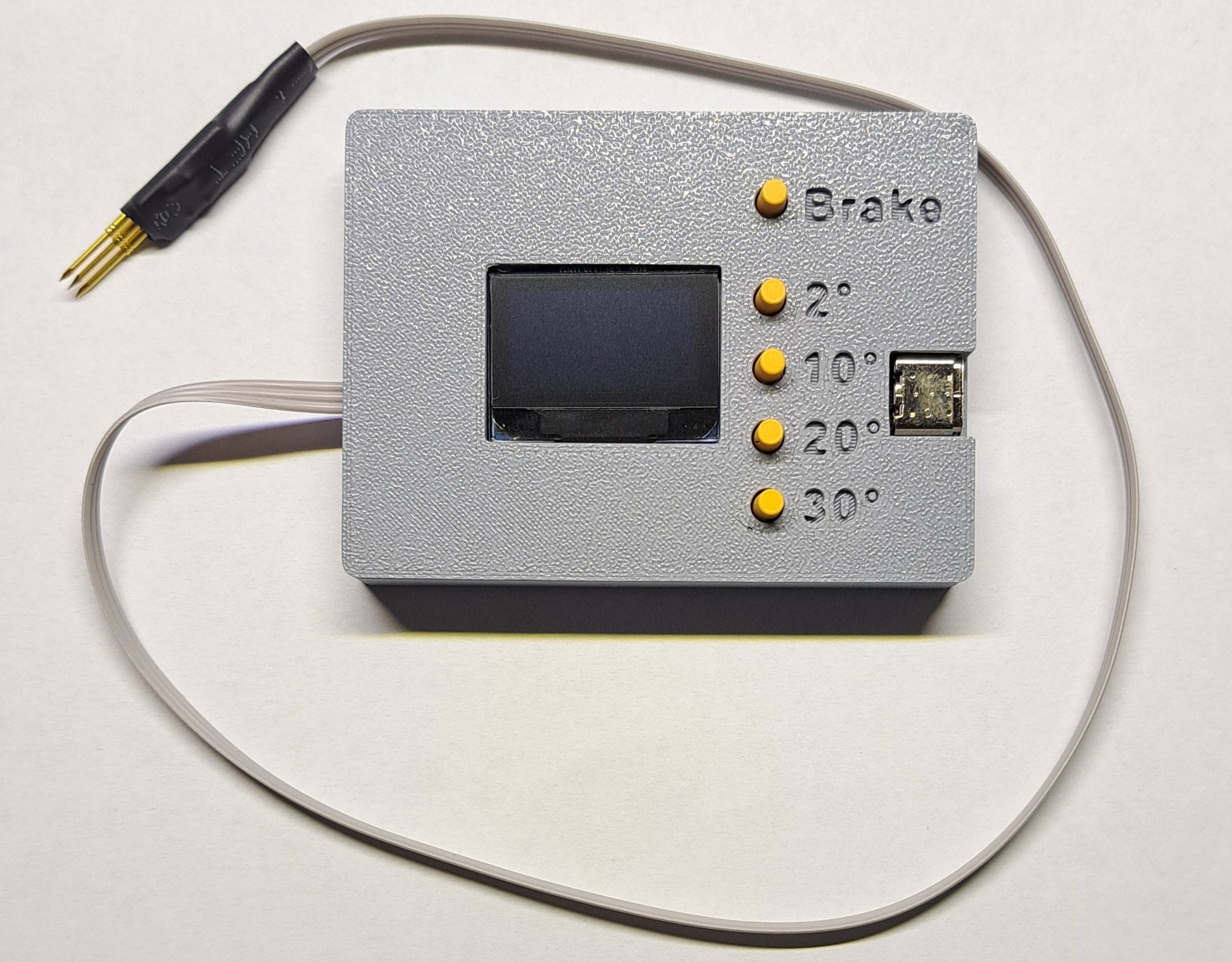

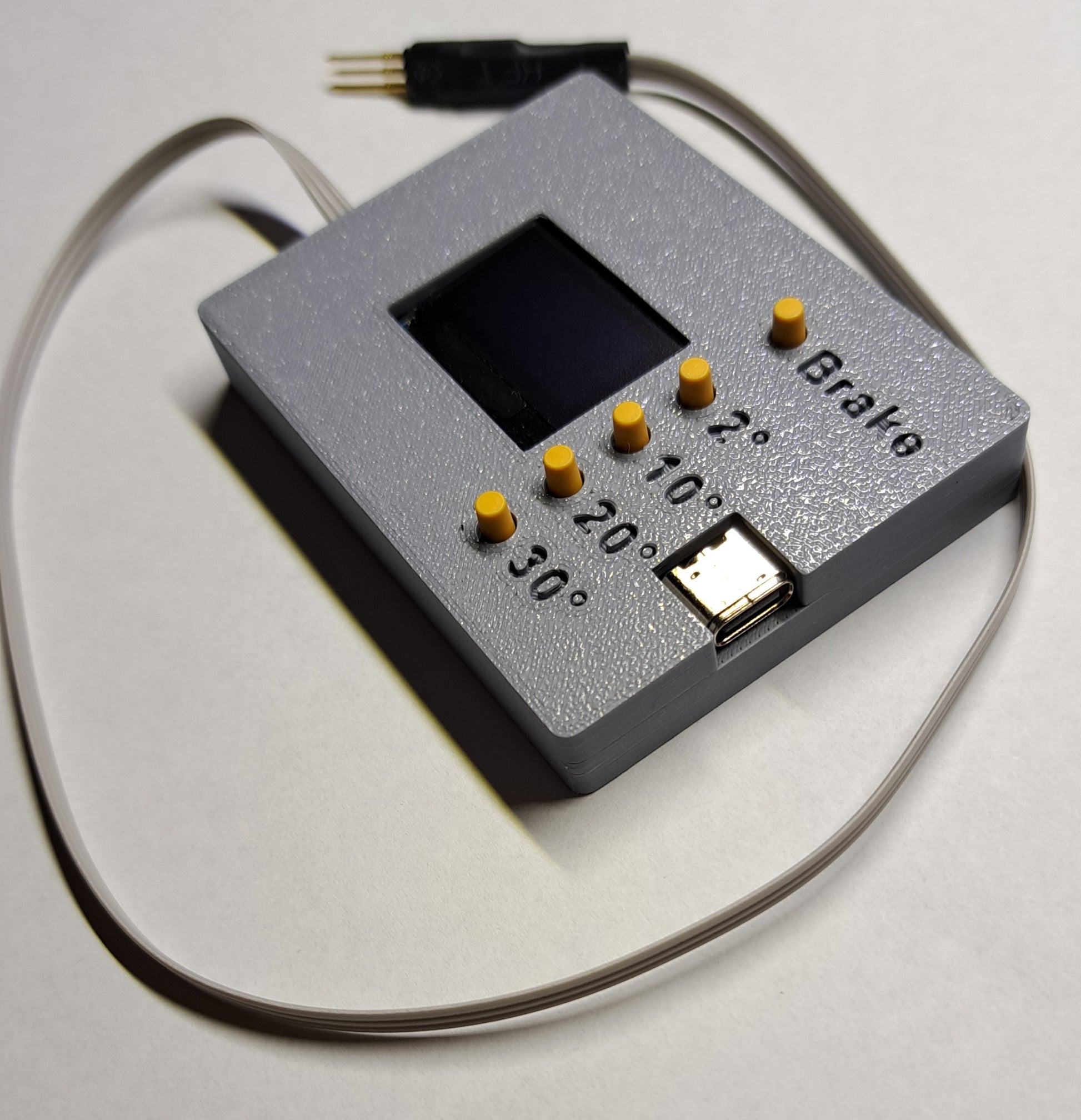

Programmer allows driver to select between different timing settings without the need to replace the eCOM on the car. Please see the picture below for setting explanation.
For Auto-Brake eCOMs it is also possible to partially disable the Auto-Brake feature in case the driver wants to feel if there is any difference. Partially disabling means that only the software part of the system is disabled, the hardware part still keeps working.
This setting will also show up when Raivis Edition eCOM is connected, but this happens only to make the programmer compatible with any boards and Auto-Brake setting on Raivis Edition eCOMs do not make any difference.

*Programmer is immediately compatible with new style eCOMs that have degree sticker (2°, 10°, 20°, 30°). For previous revision eCOM reflash please contact us via email.

Specs

• Dimensions 74x55x11mm (2.91x2.17x0.43in)
• OLED display
• Wrong hookup protection
• Required power supply: 5V USB-C

How to use

1. Connect USB-C

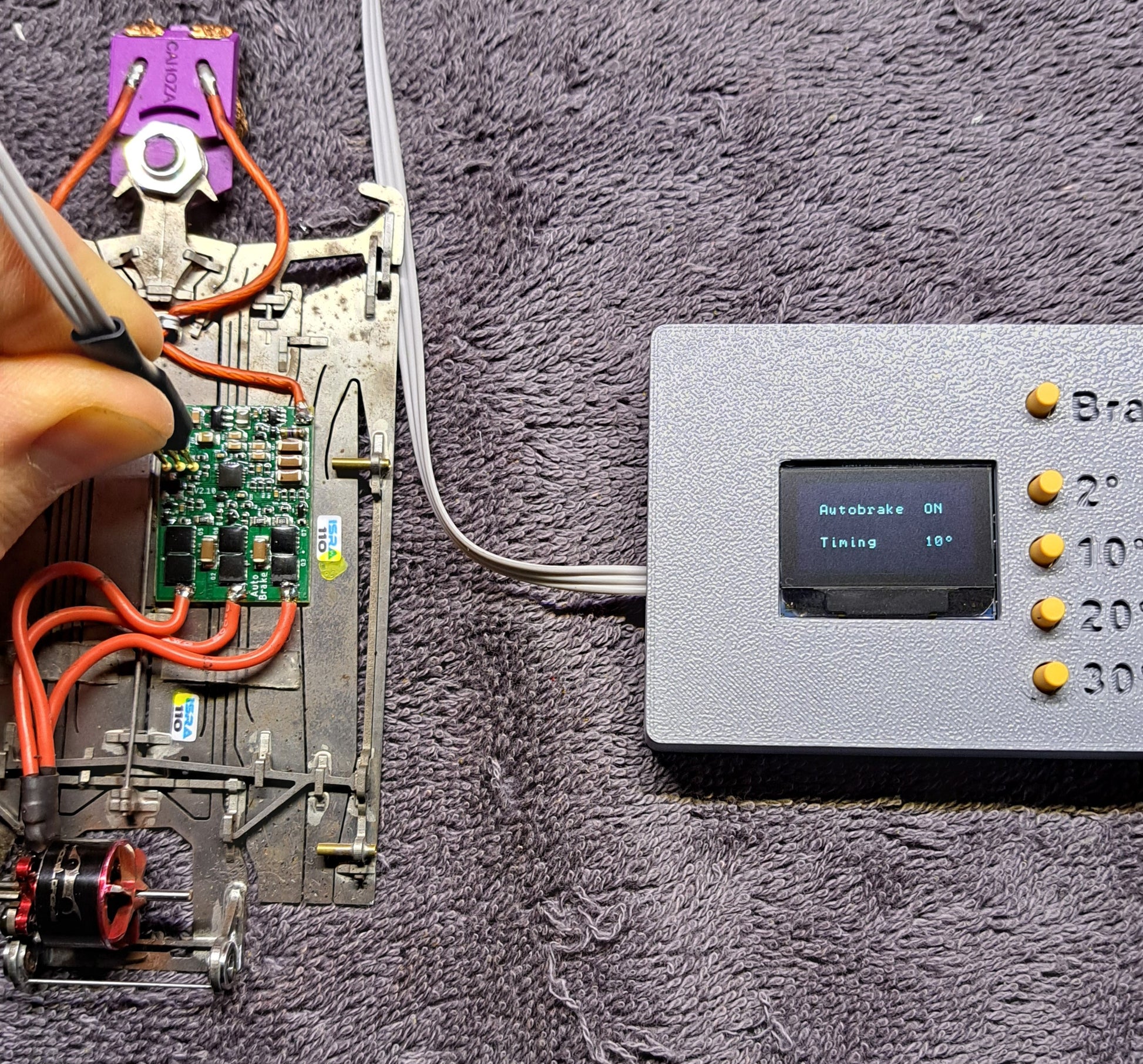

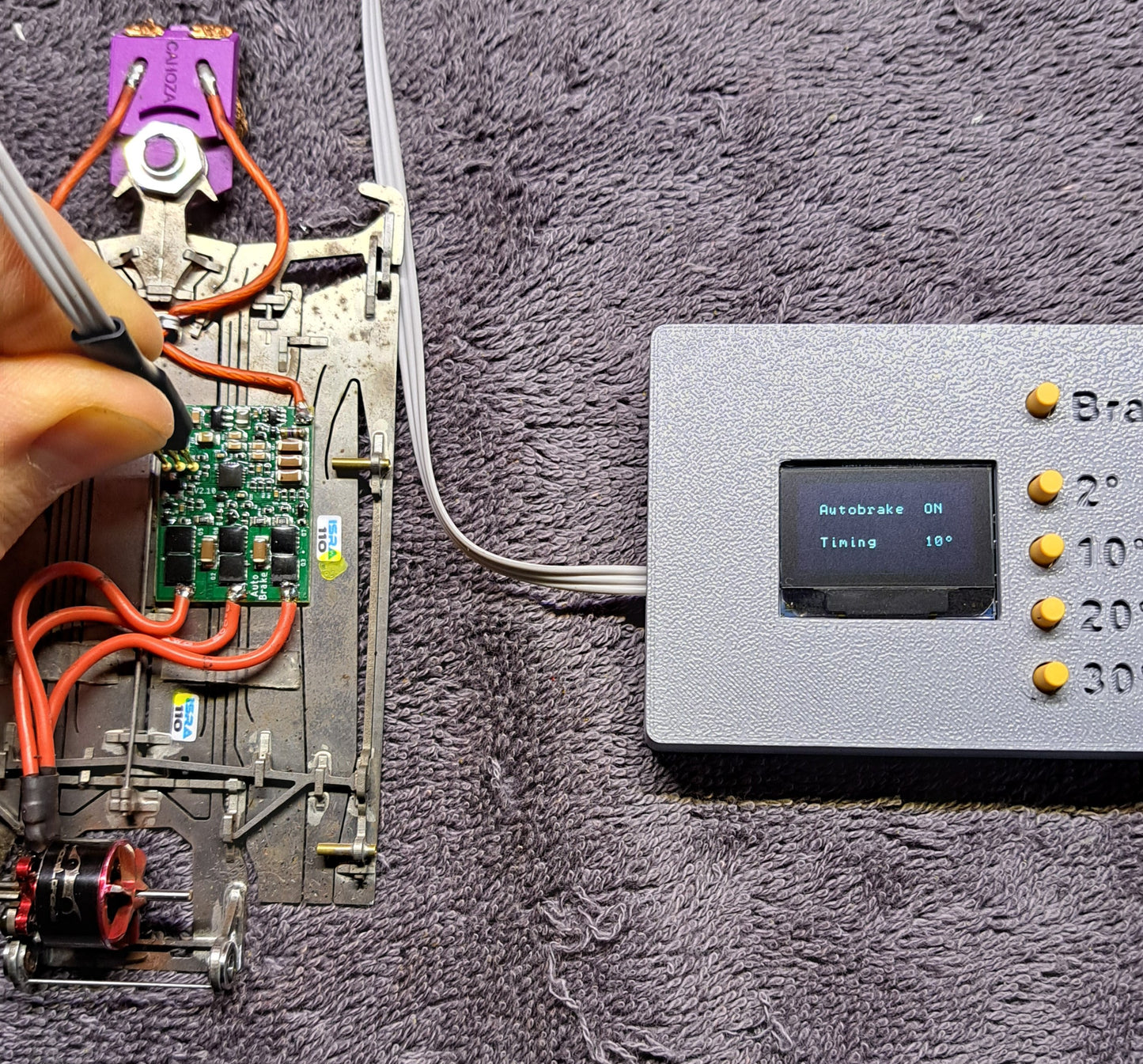

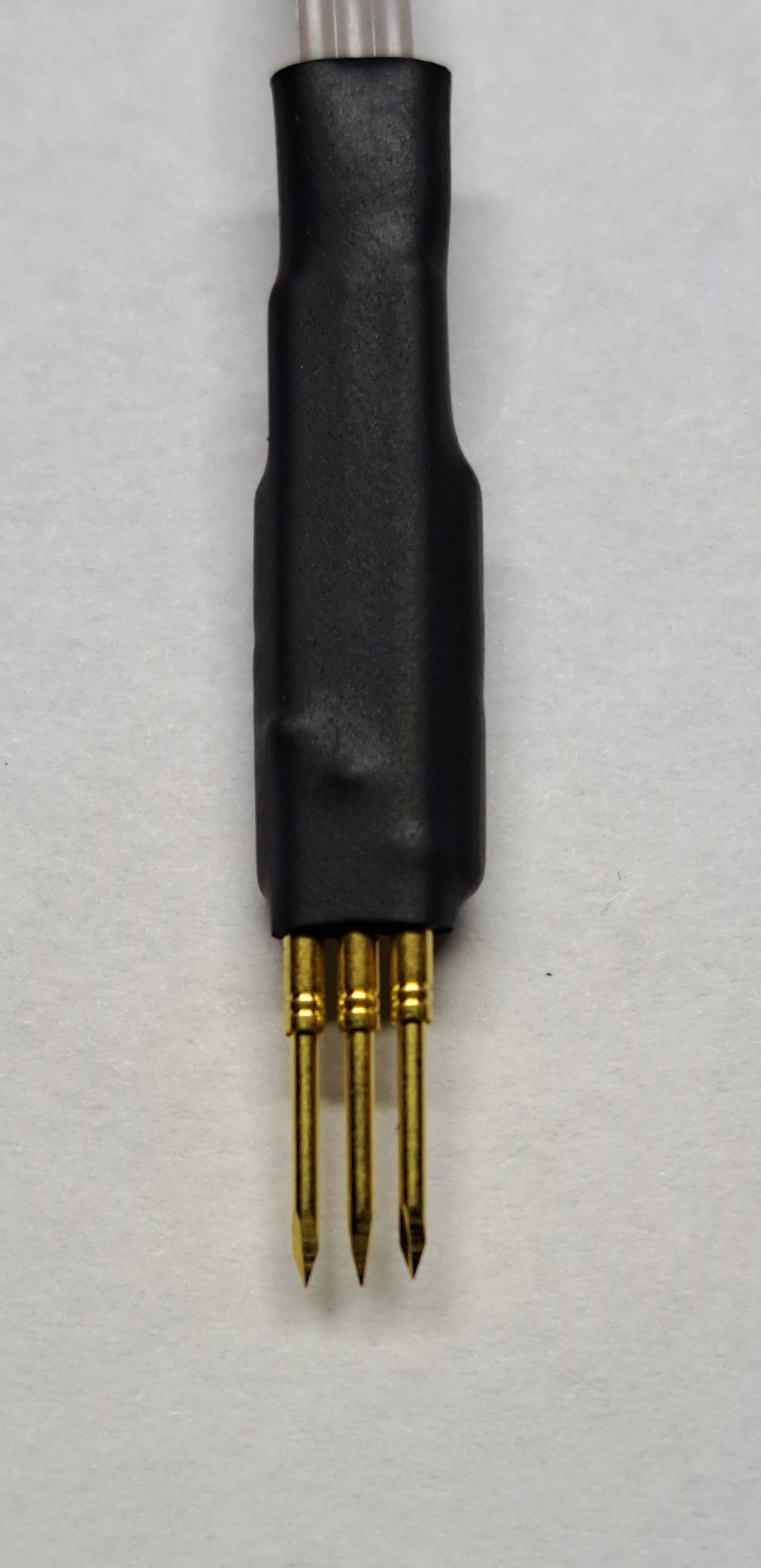

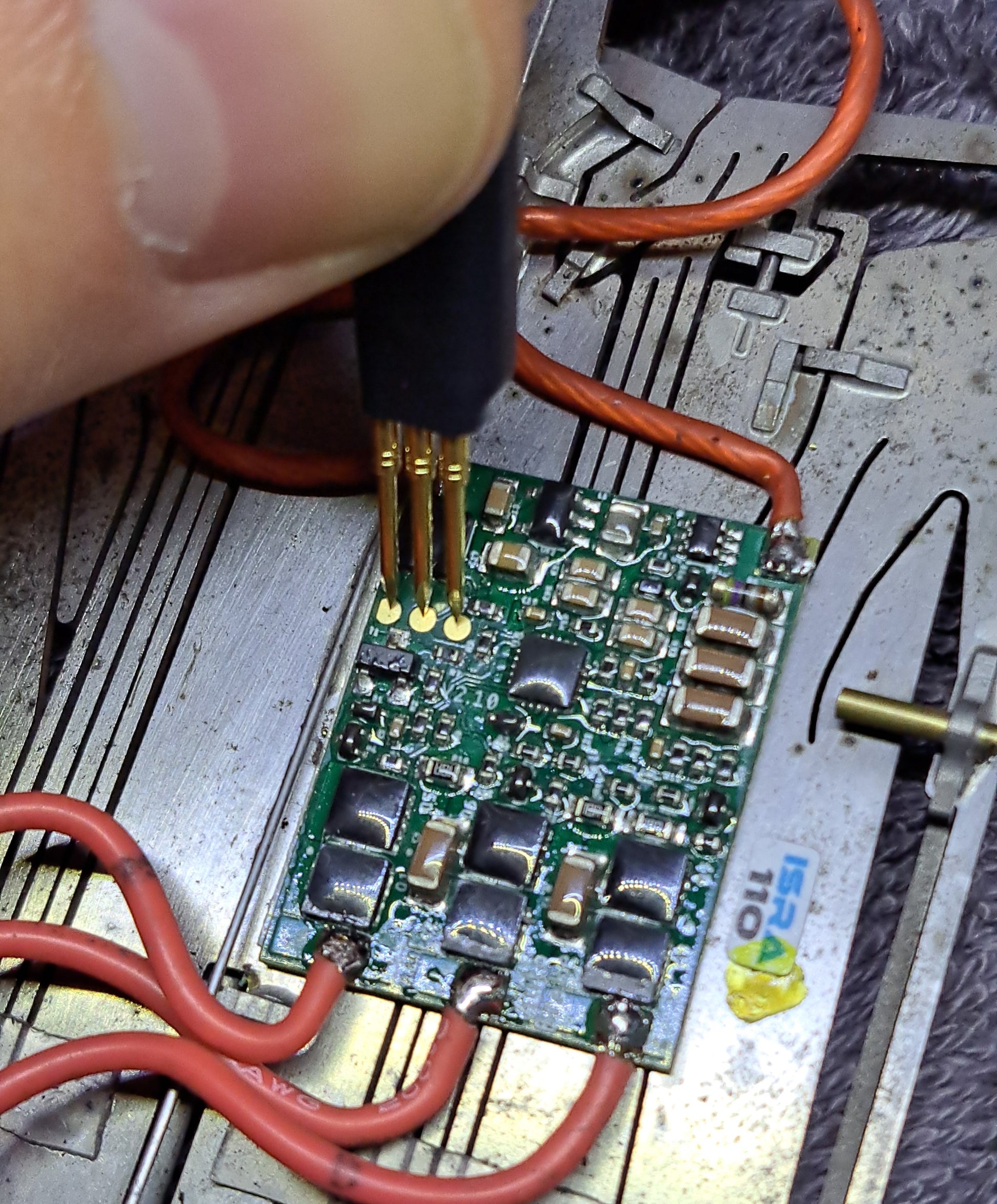

2. Press down and hold the programming cable needle pins against the 3 programming pins on the eCOM

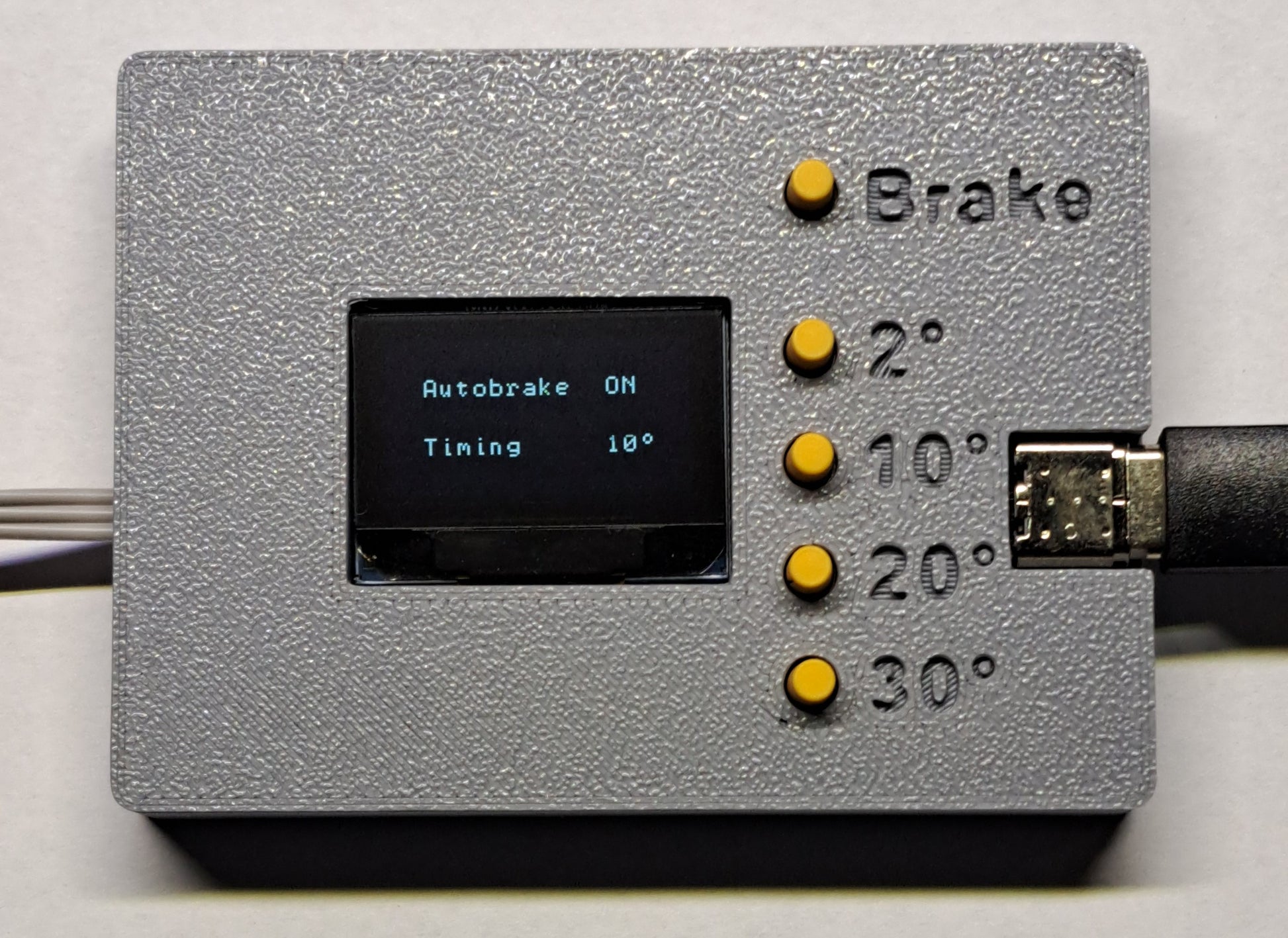

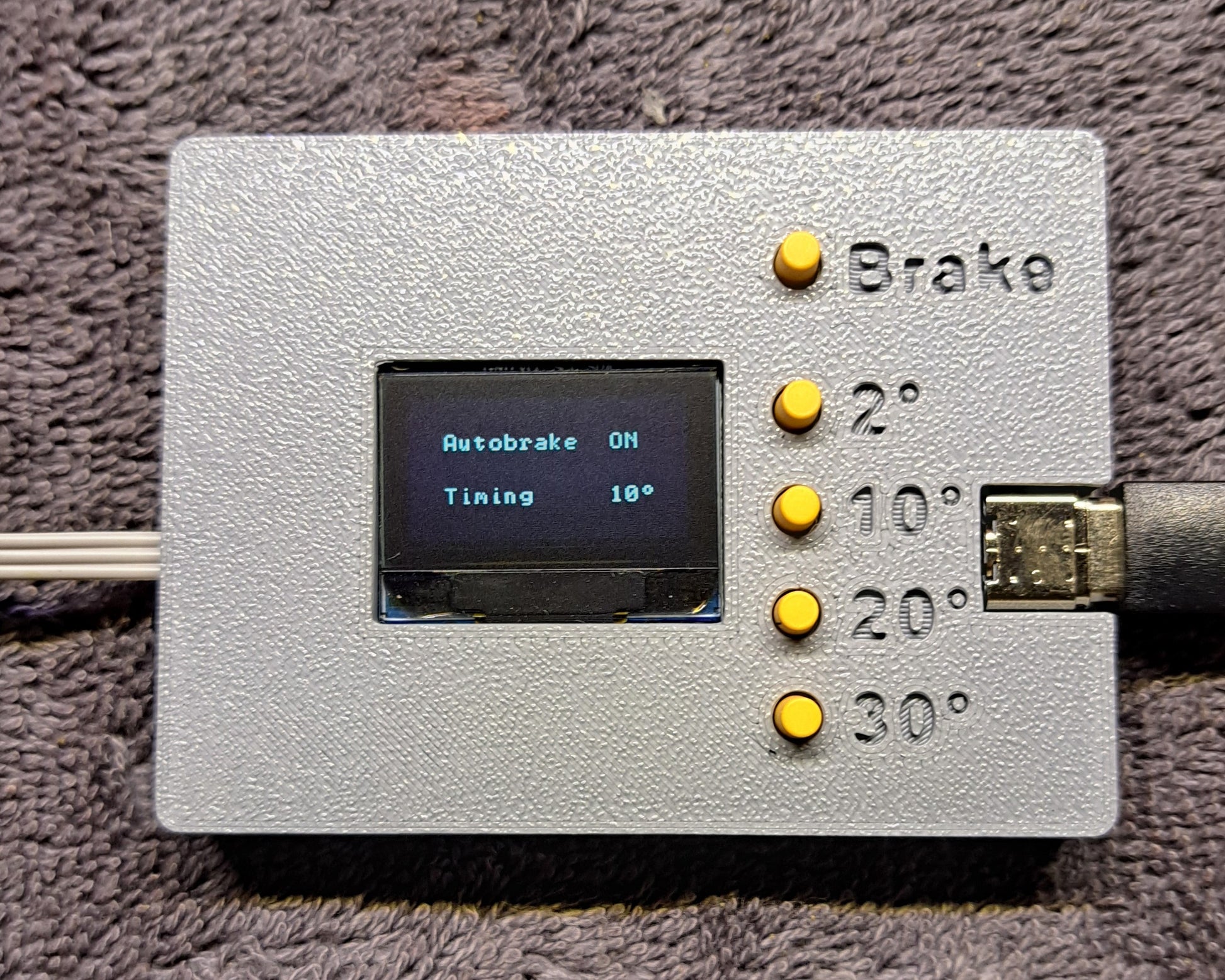

3. The programmer should display the current settings. If it still shows "Disconnected" try flipping the programming cable needle pins. If it shows "error" it means that eCOM firmware is not compatible with the programmer.
4. Press a button to select a new setting one at a time. Once the new setting is successfully saved in the eCOM it will also show up on the screen.
5. When you are done, just lift up the programming cable needle pins.
