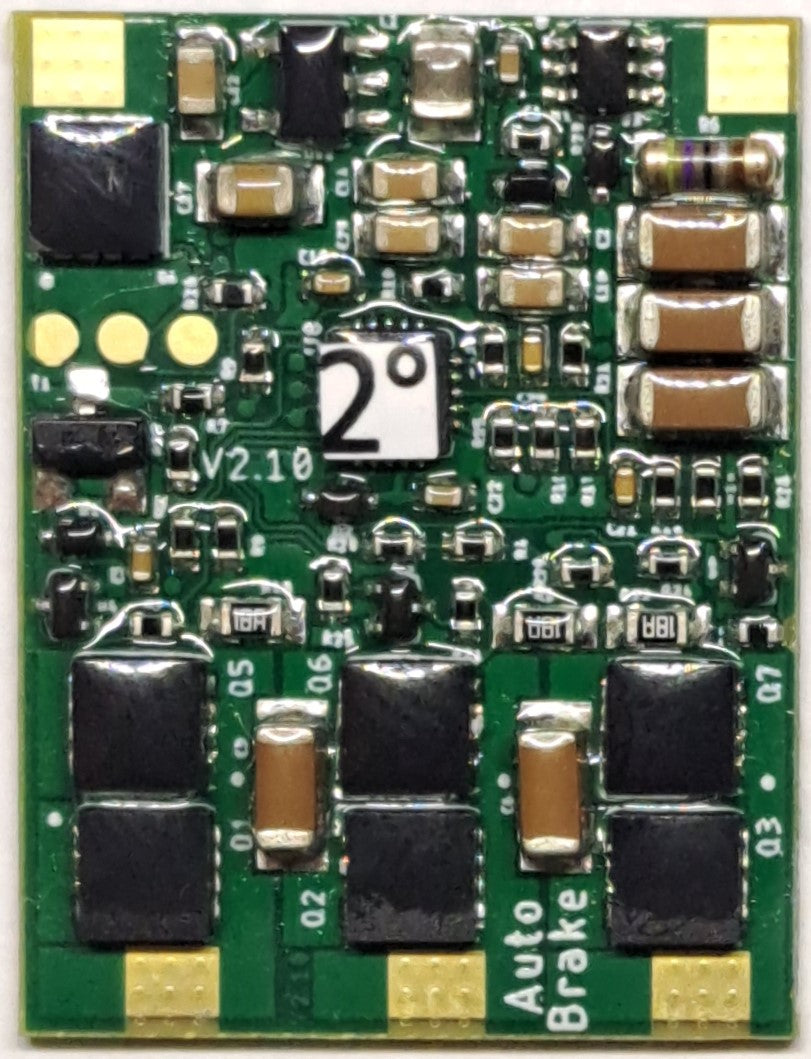

Auto-Brake eCOM

Description

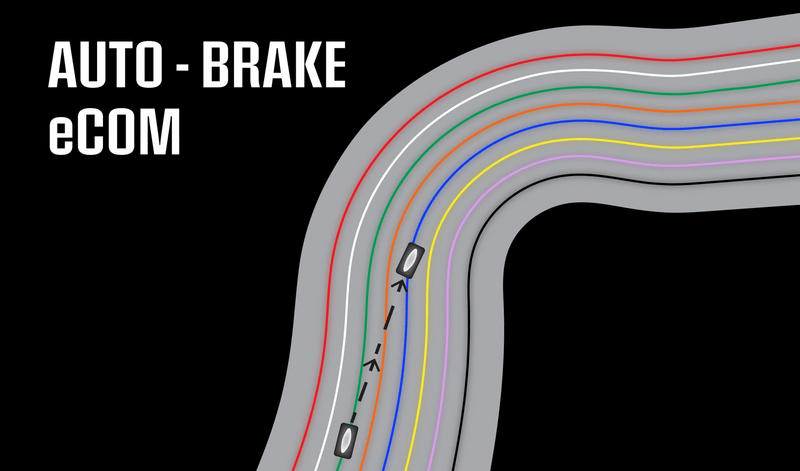

Auto-Brake eCOM will automatically apply brakes to the brushless motor, when the car gets out of the lane. This feature allows minimizing the risk of damaging the car by shortening travel distance after the car is de-slotted.

Specs

• 4 copper power layers
• Dimensions 20x28mm (0.79x1.10in)
• Supports 6 pole motors up to 36000KV* and 12 pole motors up to 18000KV*
• Startup at 2V
• Single-sided components
• Acrylic coating
• Reverse polarity protection
• Max operating voltage 15V


*Capabilities for Advanced timing version. Regular and Soft up to 32000KV for 6 pole and 16000KV for 12 pole motors.

Timing options

2°   Most aggressive timing

10° A little less aggressive than 2°, ideal for Eurosport

20° Slightly more aggressive than 30° (soft), also fits Eurosport for more technical tracks

30° The softest timing, ideal for F1

Read more about Auto-Brake vs Standard eCOMs here

DO NOT clean with acetone or IPA!
